Universal router template - UFS

The selection of connectors and fittings is large, but the possibilities for using them quickly and precisely - so far rather limited.

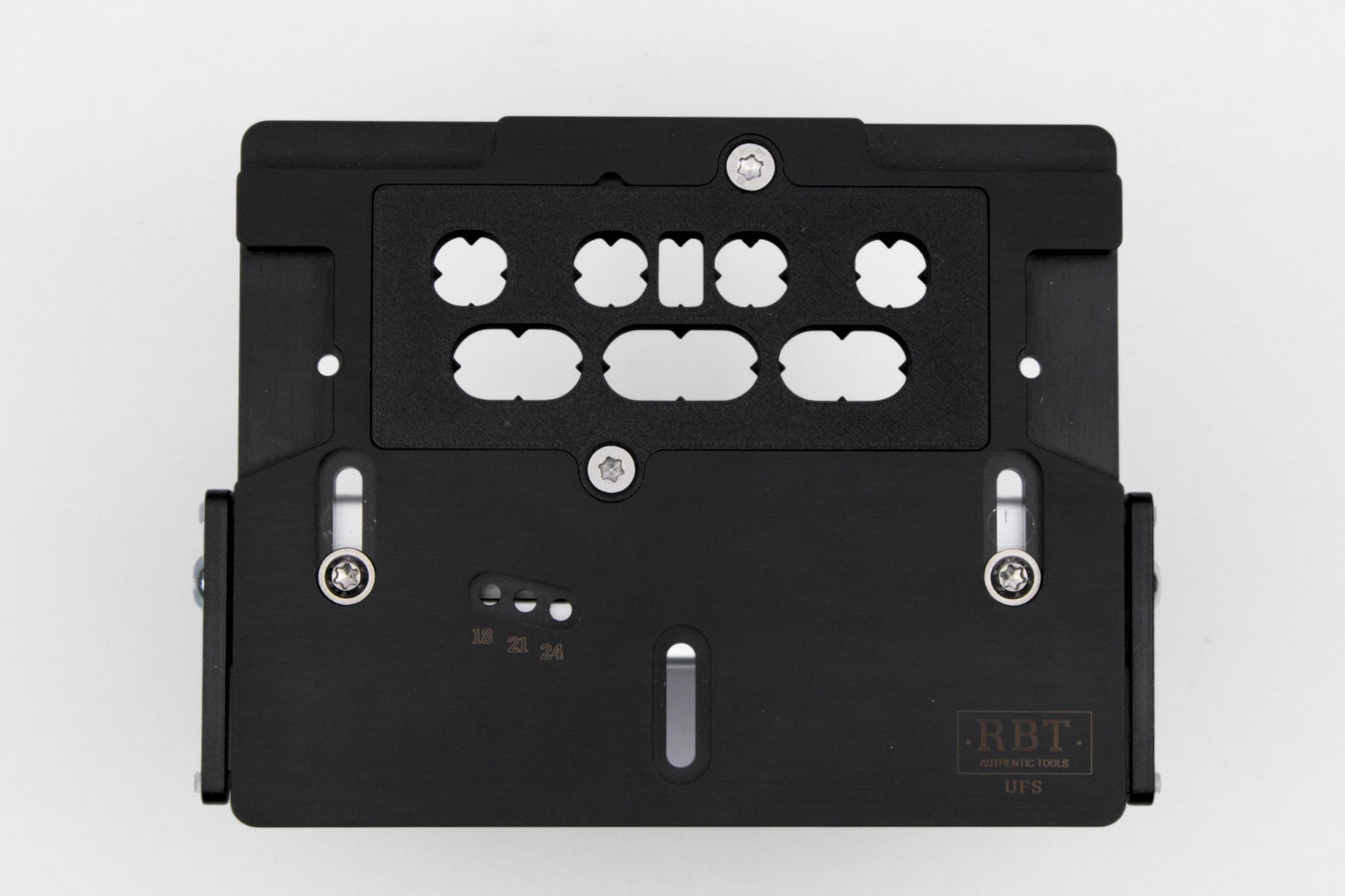

With the UFS, implementation can now be achieved in the shortest possible time thanks to interchangeable routing inserts.

• Round dowels and rows of holes (LR32)
• Festool Dominos in all sizes, as well as “tight” and “loose” fit
• Slot and tenon joint with adjustable groove length
• Dovetail joints (up to 19mm material thickness)
• corner pivoting hinge
• Concealed hinges
• Locks

• handles
• Worktop connectors
• Special connectors such as the Lamello Cabineo
• and many other possibilities.

You can find all template available for the UFS here.

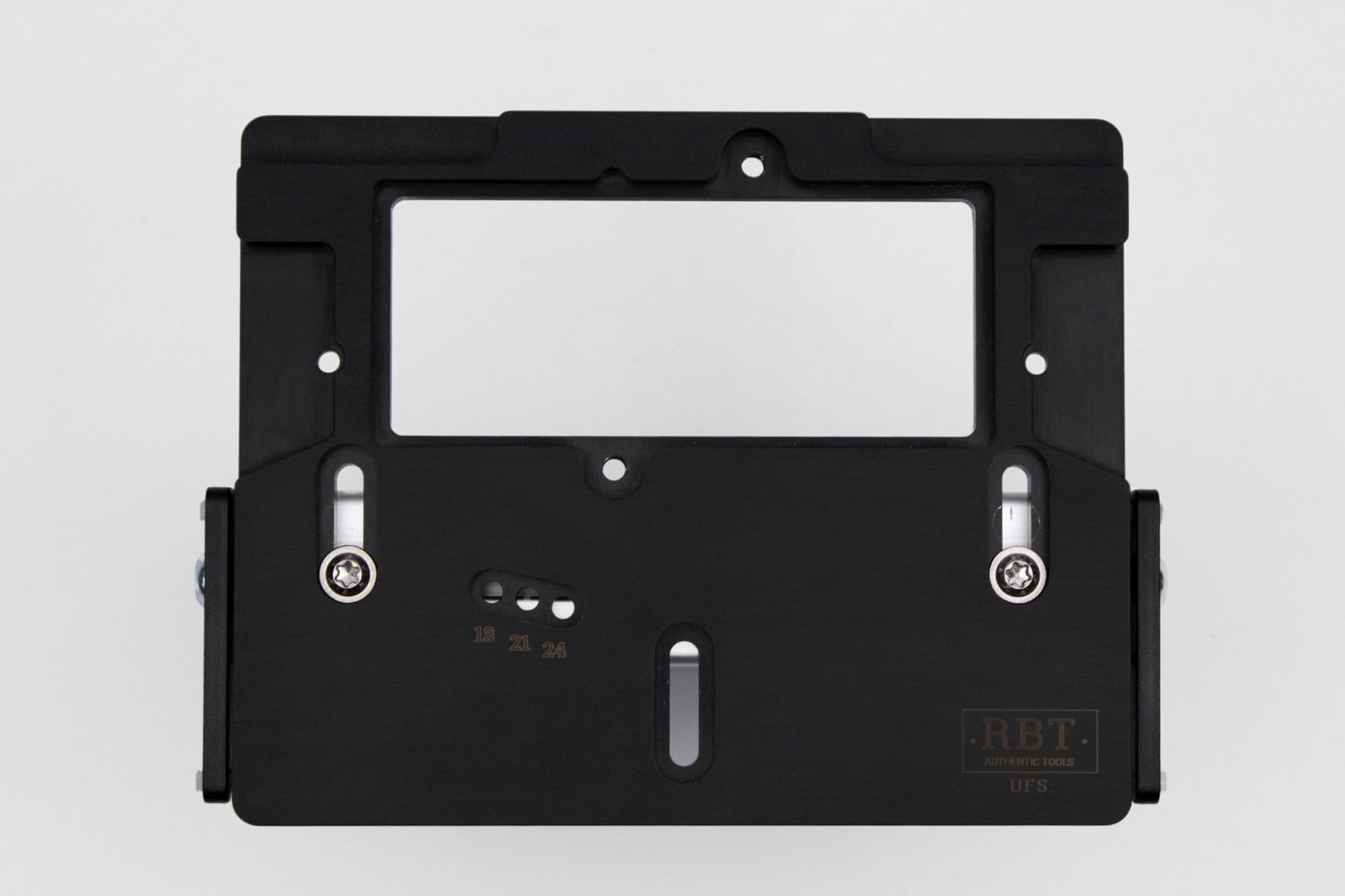

The support can be moved parallel to enable precise positioning.

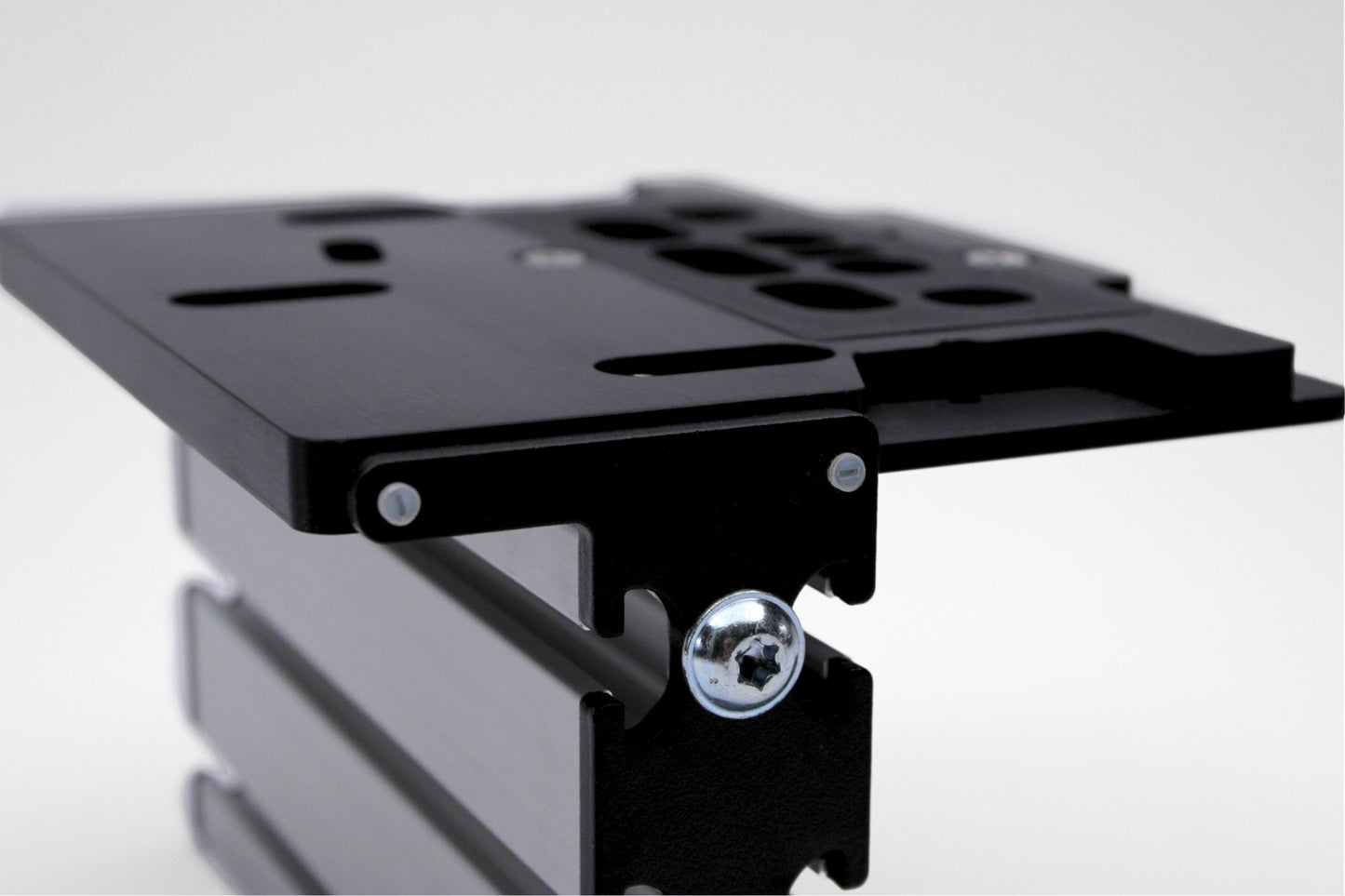

Repeatable routing is guaranteed by pluggable bolts,
When milling dominoes, spring-loaded stops make the work easier.

With the UFS you create new possibilities in your hobby workshop, instead of time-consuming template construction or the use of expensive and complicated CNC milling machines.
The fast and mobile application is valued in carpentry shops and trade fair construction.
Whether for sample pieces or for use on assembly lines, the compact design enables precision in handbag-sized Systainer format.

Required accessories

All you need is a router with a 17mm guide bushing; any standard clamps for guide rails (e.g. from Piher, Bessey or Festool) can be used for fastening.
Most templates are designed for the use of an 8mm grooving cutter,
Diameter dominoes and round dowels can also be adjusted with 4,5, 6 and 10mm bits.
If special bits are required, this will be noted in the inserts.

Dimensions

• Dimensions of aluminum plate: 200x160x12mm

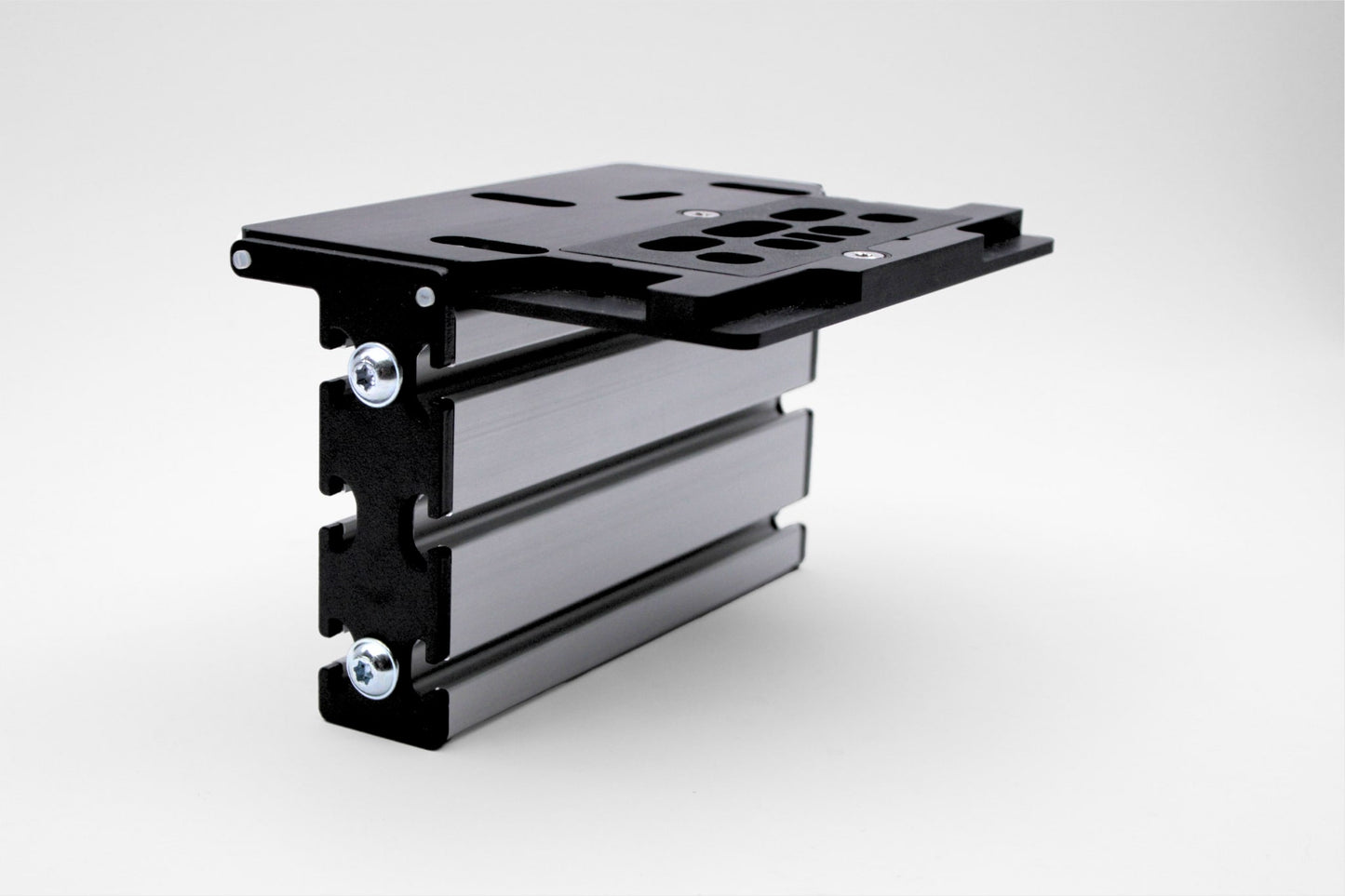

• Dimensions of aluminum profile: 40x120x202mm (I-type groove 8)

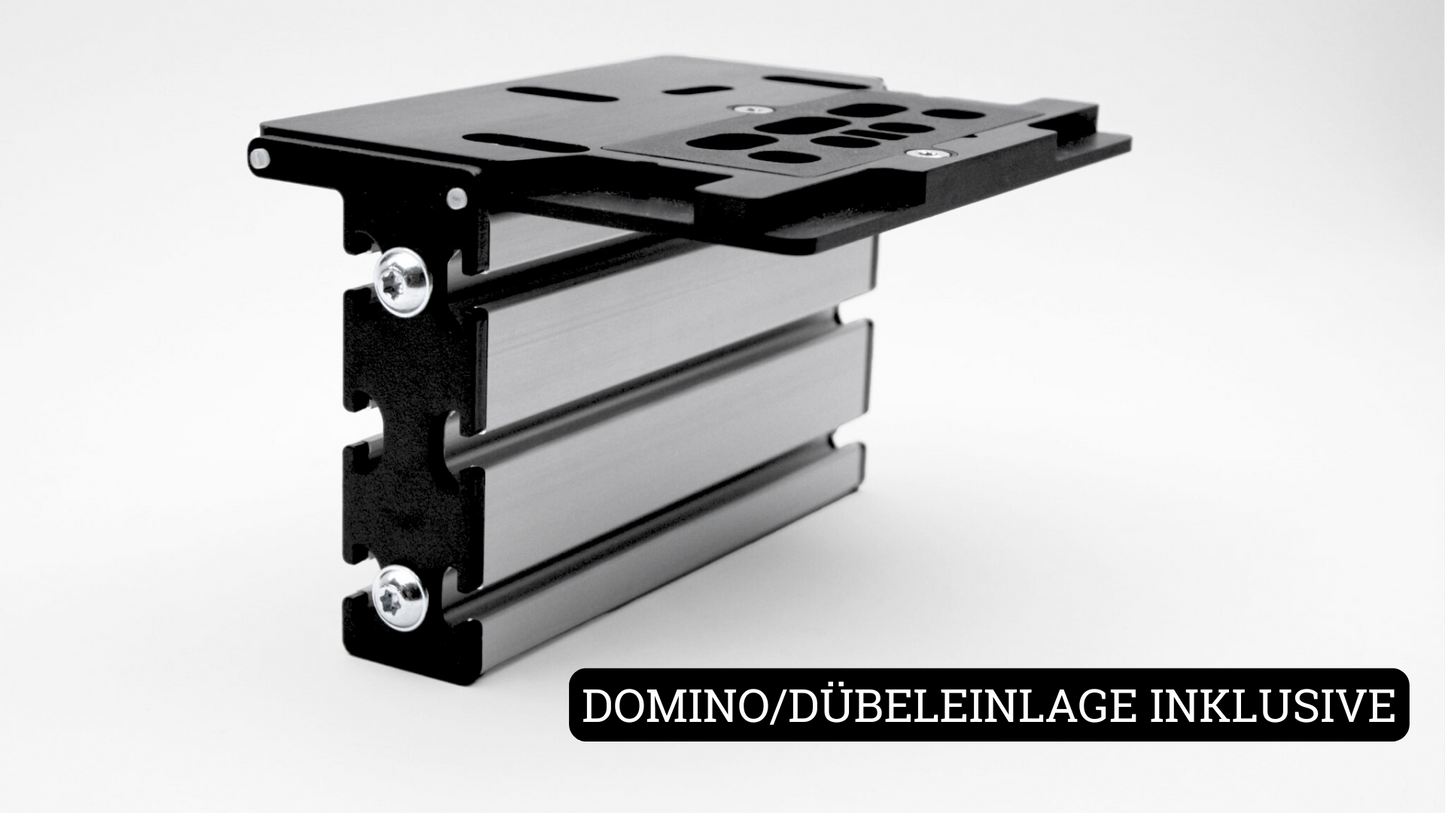

• The jig includes the template for Domino, round dowels and LR32

You can find all template available for the UFS here.
