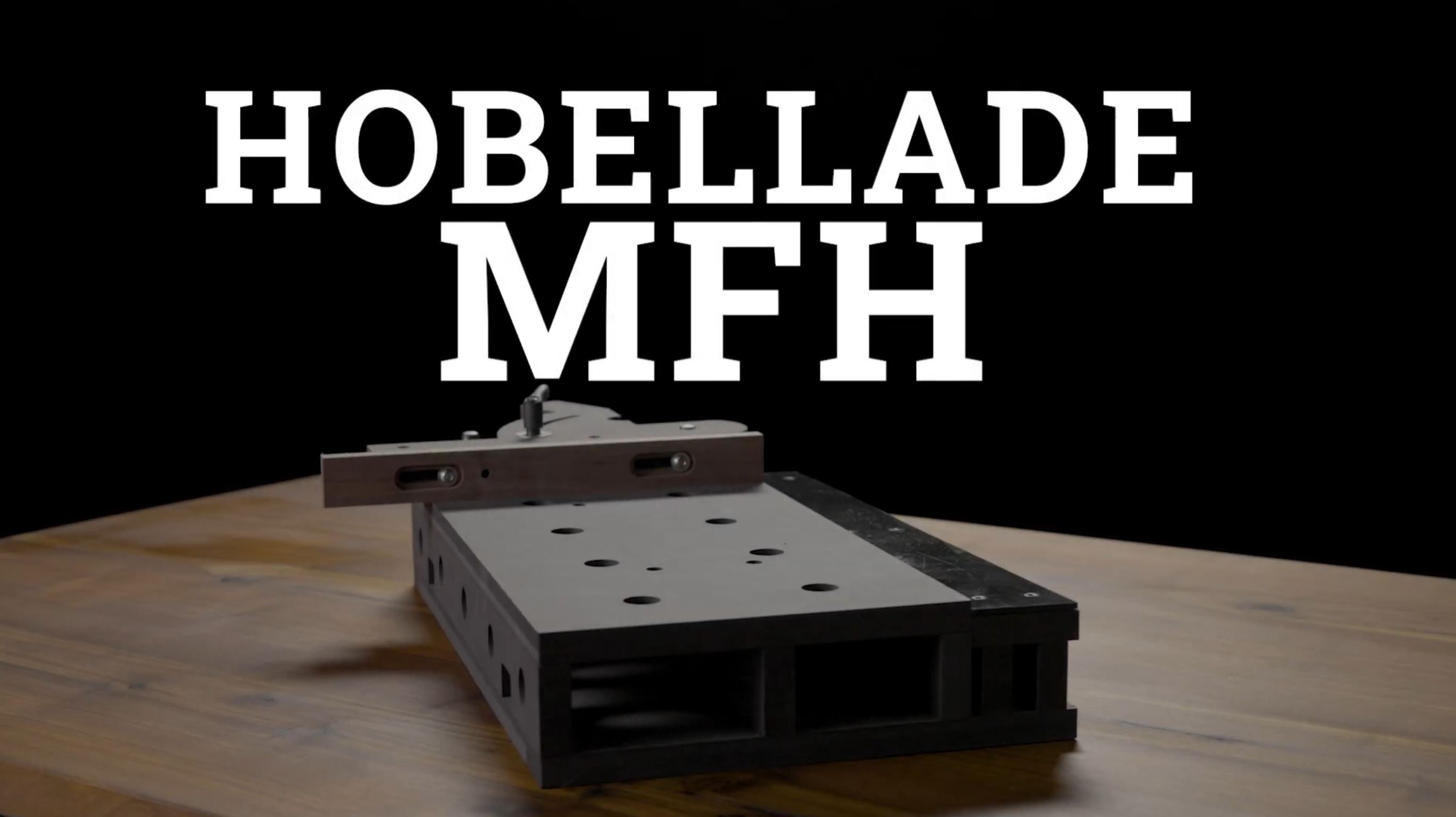

Multifunctional shooting board MFH

The precision of a miter saw with a hand plane

Right-angled components are the foundation of every furniture project.
With the MFH, workpieces can be planed with precise angles and dimensions.
Precise at 0° and 45°, flexible at all angles in between.
In combination with a hand plane*, you can create repeatable workpieces for the construction of frames, bases or simple butt joints.
The optionally available Donkey-Ear enables the production of mitres for drawers or narrow cabinets up to a width of 170mm.

In addition to its function as a shooting board, the MFH also serves as a small workbench thanks to its 20mm hole pattern. This turns even the living room into your small workshop (assuming your family and neighbors are willing :-)).

Properties and dimensions of the apartment building

• Dimensions: 480x285x105mm
• Material: birch plywood, walnut
• Exact angle stop at 0° and 45°, thanks to fine adjustment

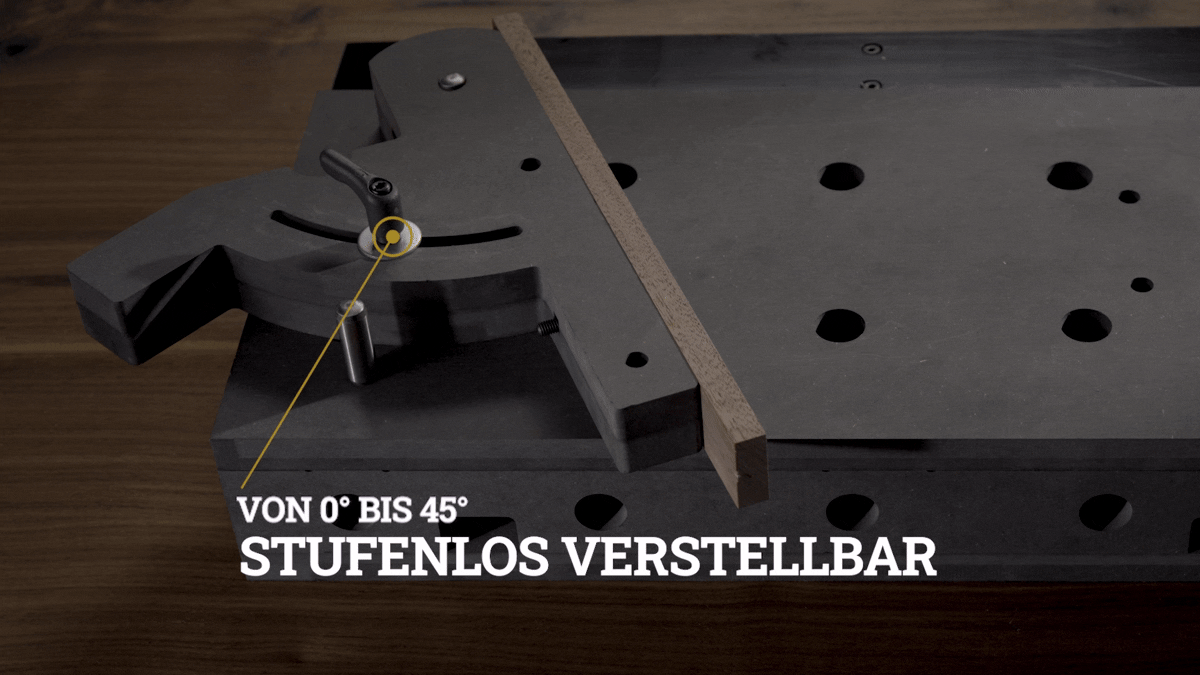

• Stepless angles between 0-45°

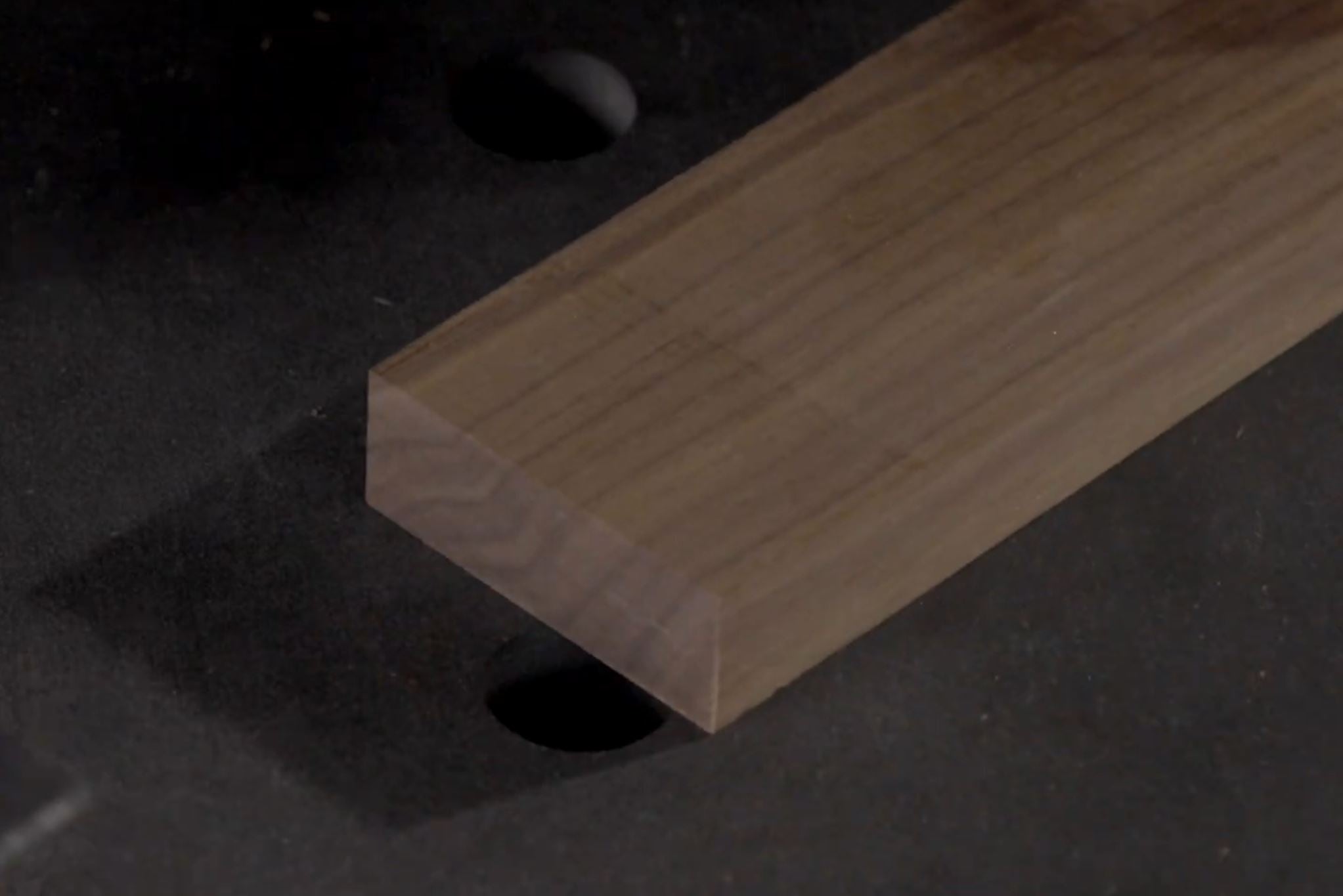

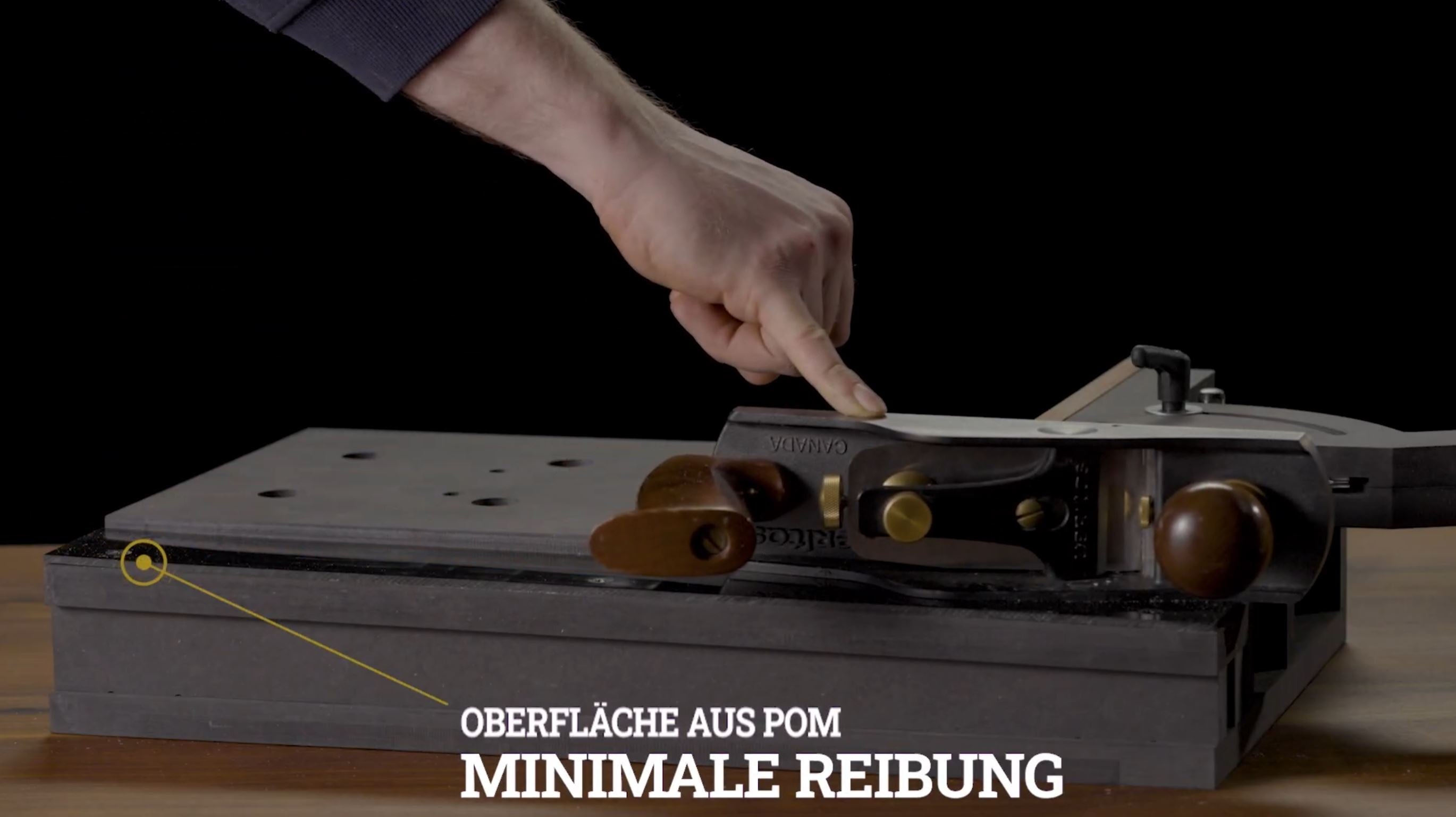

• More comfortable work and fewer tears thanks to the sloping ramp (coated with plastic for better gliding properties)

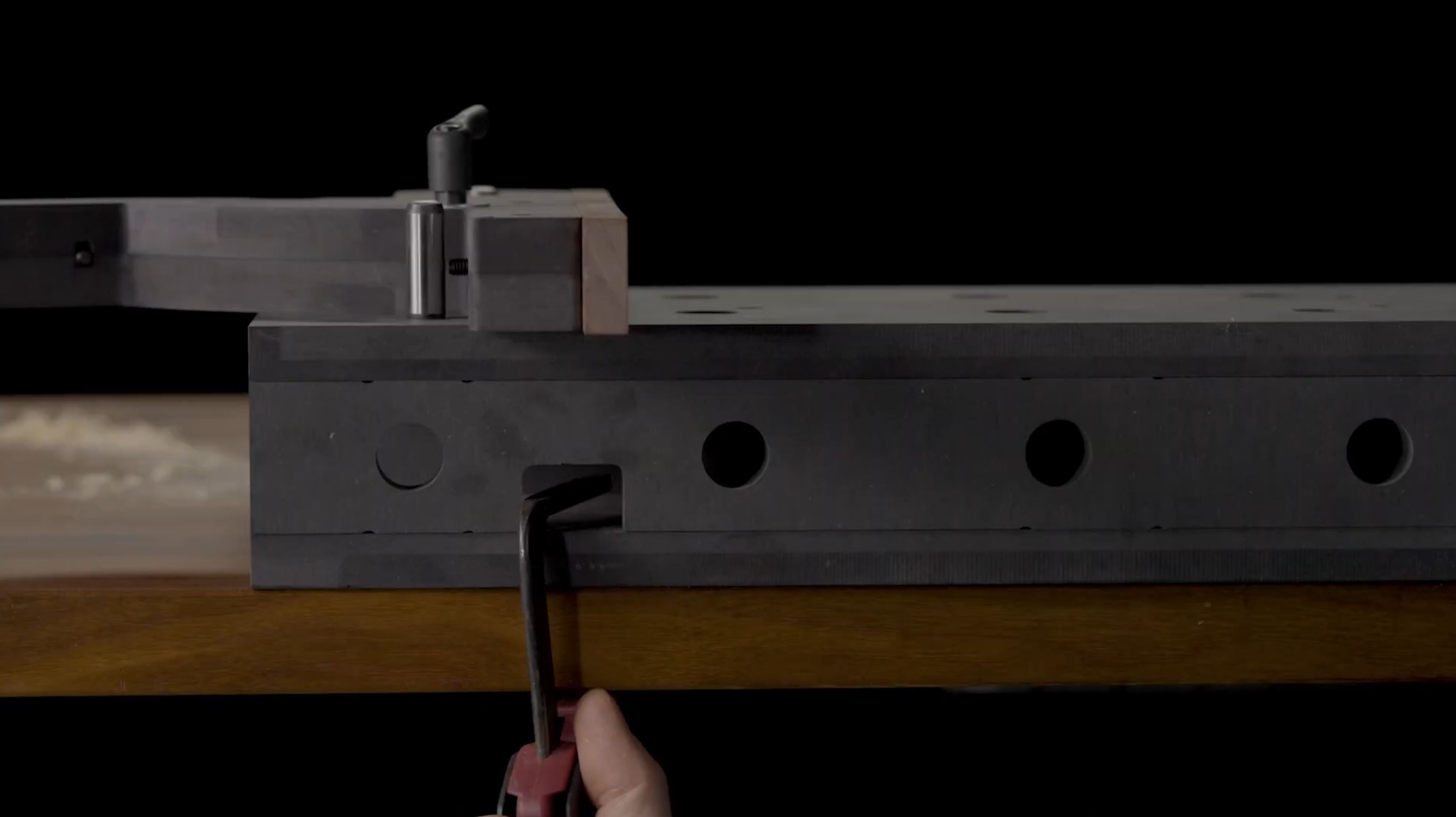

• Hole grid system 20mm with 96mm spacing for the use of suitable clamps and benchdogs

The shooting board is supplied as a kit

All you need for assembly is glue, clamps, mallets and a little sandpaper.
Thanks to a simple plug-in system, assembly is effortless and takes less than 20 minutes.

Recommended planes

In principle, any common plane can be used. Planes with a small mouth, long support, and a flat bevel angle (also known as bevel-up) are preferred. A selection of popular planes:

• Low-angle plane No. 62
• Block plane No. 9 1/2
• Smoothing plane No. 4
