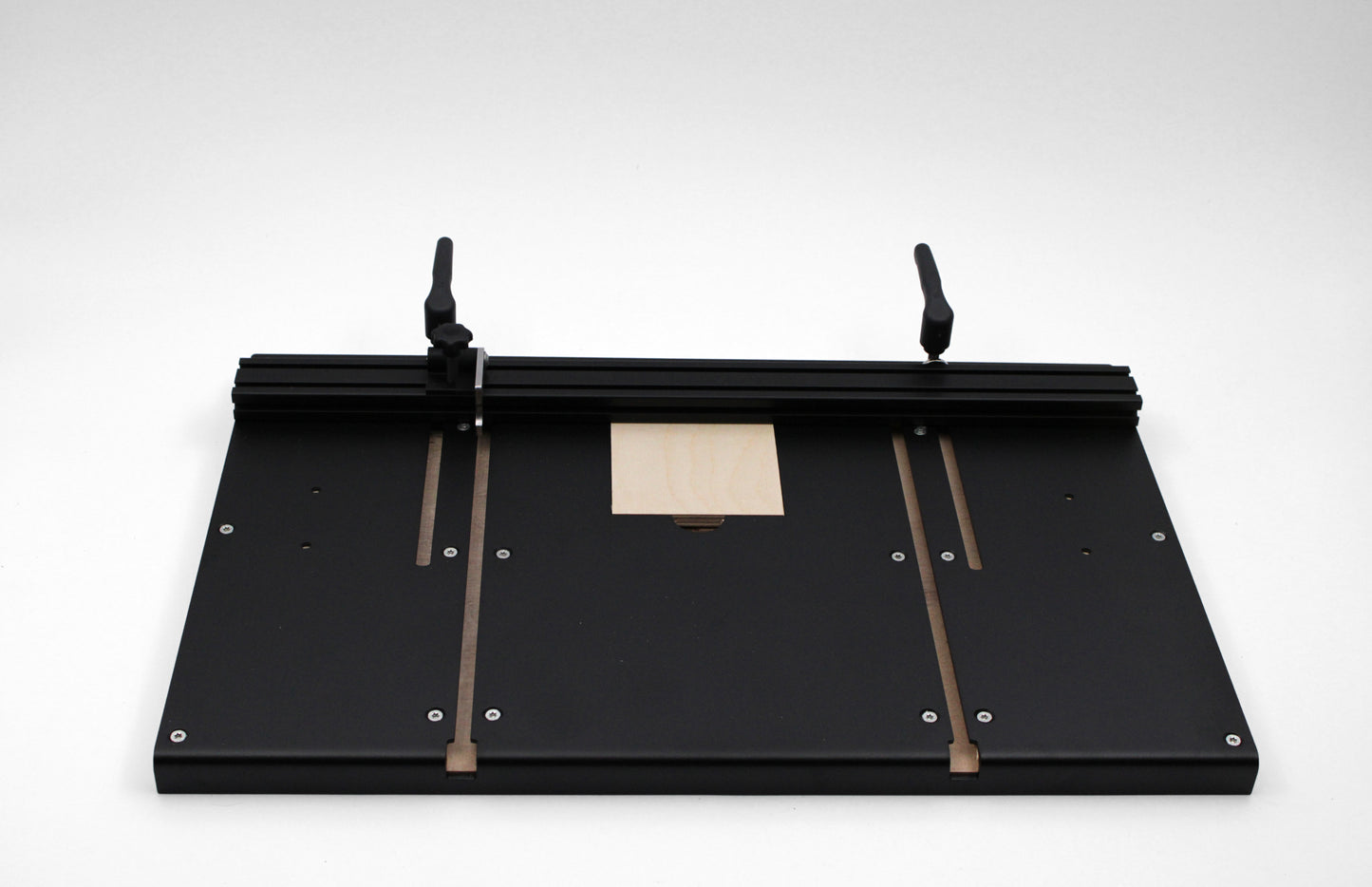

Drilling table - BFT

Solid drilling table with flexible clamping options

BFT offers professional solutions and quality at an affordable price.
Instead of sheet material and aluminum profiles, the support is made of 3mm thick steel.
This means that no material warps, even when working with courage.
All conventional guide rail clamps such as those from Bessey, Piher or Festool are suitable for fixing.
A replaceable insert made of 9mm MPX enables tear-free drilling and can be adjusted flush with the surface using four leveling screws.
The 20x40mm stop can be turned to securely fix both flat and tall workpieces.
The sliding stainless steel stop rider enables repeatable drilling (e.g. for the feet of cutting boards and carcasses).

As a special feature, the drilling table can be used as a milling stop for the Festool Domino DF500:
Repeatable milling of frame parts is achieved more precisely and, especially with small workpieces, more safely by fixing them with clamps.

For mounting on your drill press or drill stand, standard wood screws with washers are usually sufficient. If you plan to disassemble the drill table frequently, ramp sleeves and threaded screws are recommended.

Features and dimensions

• Dimensions: 555x350mm
• Material:
  • Support: 3mm steel plate, black powder-coated, 21mm MPX
  • Stop: Anodized aluminum profile 20x40 I-type (extendable with connectors) stainless steel folding stop, guide made of PLA.
  • High-quality adjustment screws from the manufacturer Kipp
• Weight: approx. 7kg (a compact heavyweight)

Suitable for all common drill presses and drill stands (e.g. Wabeco)

*The drill, drill stand, and clamps shown are not included, but that's no surprise ;)
